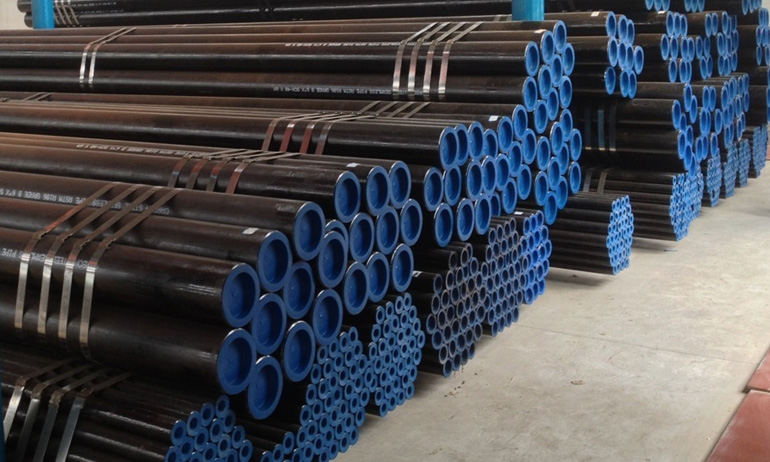

API 5L Welded and ERW Pipe manufacturer in India

API 5L ERW Pipe Manufacturer in India, API 5l carbon steel pipe.

Standard API 5, created by the American Petroleum Institute, takes into account various classes of pipes that are welded and seamlessly formed. Along with DSAW and LSAW, resistance welding methods such as API 5L Erw Pipe construction offer a quick and effective way to build pipes.

By heating metal components in contact or pipe to be constructed with an electric current, which melts the metal at the joints, electric resistance welding, also known as ERW, is a type of welding technology. The Electric Resistance Welding Technique is primarily utilised, for instance, in the production of various steel API 5L Welded Pipe in addition to being widely used in the assembly of car bodies.

The electrodes that are typically employed in this manner to produce clamping pressure could receive the electric current, or it could perhaps be induced by an outside magnetic field. Depending on the geometry of the weld and the technique used to provide pressure to the joint, the electric resistance welding process could be further divided into different categories. Schedule 40 erw pipe could be welded using a variety of welding processes, including spot welding, projection welding, seam welding, and flash welding. The sizes of the workpieces, the coating used on the API 5L Carbon Steel Welded Pipe or its absence, the electrode geometry, the materials used to make the electrode, the force used to press the electrode against the workpiece, the length of the welding process, and electrical current are some of the variables that affect welding temperatures. When an electrical current is sent through metal, little pools of molten metal form at the location of greatest electrical resistance, also known as the joining or faying surfaces. Electric current typically ranges from 100 to 100,000 A. Resistance welding techniques, like the ones employed on the API 5L PSL2 erw pipe, are typically thought to be effective as well as having little environmental impact. However, they have only been used for thin materials or moderately thin piping systems.

Wet H2S, or hydrogen sulphide cracking, is referred to as HIC, or hydrogen induced cracking. A high concentration of hydrogen from aqueous sulphide corrosion causes a metal component, in this case a carbon steel pipe, to blister, which results in HIC. The vulnerability of steel-based components to hydrogen embrittlement is continuously assessed. The test technique entails assessing the resistance of several grades of steel pipes, such as the HIC tested the hydrogen-reduced cracking resistance of API 5L welded pipe. We are one of the suppliers who offer pipe that is cut to length in every grade, saving you money. A provider of API 5L Welded Pipe, Rakesh Metals keeps pipes in all.

Sizes of API 5L Welded Pipe
Specification of API 5L Welded Steel Line Pipe
API 5L ERW PSL1 Vs PSL2
Weight of API 5L ERW Pipe
Prices of Carbon Steel API 5L ERW Sch 60 Pipes
Schedule Chart of CS API 5L Spiral Welded Pipe
ERW Steel Pipe API 5L Thickness Chart
Pressure Rating of API 5L ERW Psl2 Pipe
Types of CS API 5L Welded Pipe

Carbon Steel Welded Pipe in PSL1 and PSL2 with HIC Test Report of API 5L Grade B

Sizes of API 5L Welded Pipe

MFG PROCESS	OD	Thickness
ERW	1/8 - 24 inch	Max 26.5mm
LSAW	219 - 3120mm	3 - 25mm
SSAW	16 - 64 inch	3 - 25mm

Specification of API 5L Welded Steel Line Pipe

Available Grades	X42 X46 X52 X56 X60 X65 X70 X80
Carbon Steel API 5L SAW Pipe	16" NB - 100" NB
API 5L Steel ERW Pipe	1/2" NB - 24" NB
SMYS API 5L LSAW / DSAW	16’OD TO 54" OD (8 MM TO 50 MM THK)
Standard	API, ISO 3183, ASTM, ASME
Test	EN 10204 3.1, Mill TC EN 10204 3.1 Mill test, HIC, SSC, NACE MR0175, TM0177, IBR, TM0284, H2 SERVICE
Wall Thick.	Schedule 80S, Schedule 80, Schedule10, Schedule 40, Schedule XXS, Schedule 160, Schedule XS, Schedule 5 Supplier and Manufacturer
PSL Level	API 5L PSL 1 API 5L PSL 2
Pipes Marking	All Pipes are marked as follows: Supplier or Manufacturer’s Name, Standard, Length, Grade, Outer Diameter, Thickness, Heat Number
Supplier & Distributors Located in	Khobar, Riyadh, Chennai, Jamshedpur, New Delhi, Ankara, Kuwait, Dammam, Indore, Tehran, Calgary, Noida, Manama, Sydney, Melbourne, India, Surat, Bogota, Nagpur, Gurgaon, Thiruvananthapuram, Kanpur, Hyderabad, Tau, Ahvaz, Gimhae si, Istanbul, Santiago, Ludhiana, London, Mexico, Lagos, Coimbatore, Howrah, Perth, Port of Spain, Caracas, Rajkot, Bangalore, Mumbai, Courbevoie, Ernakulam, Vadodara, Baroda, Bengaluru, Kolkata, Gujarat, Ludhiana, Janeiro, Montreal, Ahmedabad, Abu Dhabi, Ranchi, Pimpri Chinchwad, Muscat, Karachi

API 5L ERW PSL1 Vs PSL2

Grade	PSL1	PSL2
UTS	-	Max required of grade
Size range	0.40	4.5
Ends	threaded / Plain	Plain
Seam welding	welding limited to Grade A25	continuous and laser welding
Yield Strength	-	Max required of grade
Electric	-	100kHz
Chemistry	0.030	0.02%
Chemistry	0.26	0.22
Chemistry	0.030%	0.015%
equivalent	as per SR18	Max required of grade

View Weight Chart of API 5L Gr B SCH 80 Line pipe, API 5L Grade b erw pipe suppliers

Weight of API 5L ERW Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Check price of API 5L SCH 80 Line pipe ex Mumbai, beveled end API 5L Spiral Welded Pipes at factory price.

Prices of Carbon Steel API 5L ERW Sch 60 Pipes

Description	Price Per Ton in INR	Price Per Ton in USA $	Price Per Ton in UAE Dirham
API 5L Carbon Steel Welded ERW Pipes	INR 32834.50	USA $ 450	AED 1652.85
API 5L Cold drawn Welded SCH 40 8inch steel pipes	INR 47427.61	USA $ 650	AED 2387.45
API 5L ssaw spiral welded steel pipes	INR 52535.20	USA $ 720	AED 2644.56
API 5L Standard Black Iron Pipe Welded Steel Pipes And Tube	INR 36482.78	USA $ 500	AED 1836.50
API 5L Carbon steel welded pipes	INR 21889.67	USA $ 300	AED 1101.90

Schedule Chart of CS API 5L Spiral Welded Pipe

1/8 Inch IPS(.405 Inch Outer Diameter)	3 1/2 Inch IPS( 4.000 Inch Outer Diameter)
3/8 Inch IPS(.675 Inch Outer Diameter)	5 Inch IPS( 5.563 Inch Outer Diameter)
Schedule 40, 80	Schedule 10, 40, 80, 160, XXH
1/4 Inch IPS(.540 Inch Outer Diameter)	4 Inch IPS(4.500 Inch Outer Diameter)
Schedule 10, 40, 80	Schedule 10, 40, 80, 160, XXH
Schedule 10, 40, 80, 160, XXH	Schedule-40 (.375)
Schedule 10, 40, 80	Schedule 10, 40, 80, 160, XXH
1/2 Inch IPS(.840 Inch Outer Diameter)	6 Inch IPS(6.625 Inch Outer Diameter)
Schedule 5, 10, 40, 80, 160, XXH	Schedule 5, 10, 40, 80, 120, 160, XXH
3/4 Inch IPS(1.050 Inch Outer Diameter)	8 ” IPS(8.625 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule 5, 10, 40, 80, 120, 160, XXH
1 Inch IPS:(1.315′ Outer Diameter)	10 Inch IPS(10.750 Inch Outer Diameter)
Schedule 5, 10, 40, 80, 160, XXH	Schedule 10, 20, 40, 80 (.500), TRUE 80(.500)
2 Inch IPS(2.375 Inch Outer Diameter)	16 Inch IPS(16.000 Inch Outer Diameter)
1-1/4 Inch IPS(1.660 Inch Outer Diameter)	12 Inch IPS(12.750 Inch Outer Diameter)
1-1/2 Inch IPS(1.900 Inch Outer Diameter)	14 Inch IPS(14.000 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule10 (.188), Schedule40 (.375)
Schedule 10, 40, 80, 160, XXH	Schedule 10, 20, 40(.375), TRUE40(.406), Schedule80(.500)
Schedule 10, 40, 80, 160, XXH	Schedule10(.188), Schedule40(.375)
2 1/2 Inch IPS(2.875 Inch Outer Diameter)	18 Inch IPS (18.000 Inch Outer Diameter)
3 Inch IPS( 3.500 Inch Outer Diameter)	Schedule 5, 10, 40, 80, 160, XXH

ERW Steel Pipe API 5L Thickness Chart

wall thickness in Inch	Tolerances in Inch
0.19	±0.02
0.59	0.06
0.19 to 0.59	± 0, 1 t

Pressure Rating of API 5L ERW Psl2 Pipe

Pipe O.D. in Inch	Thickness Chart in Inch
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

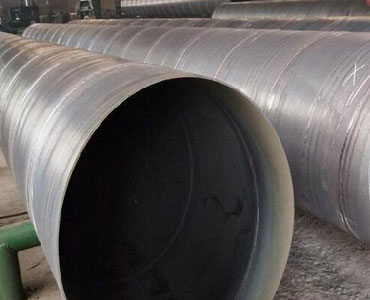

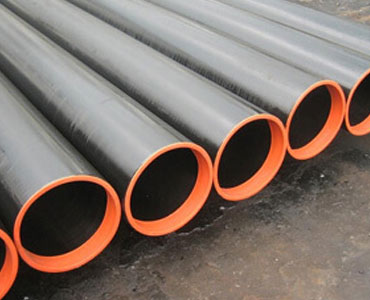

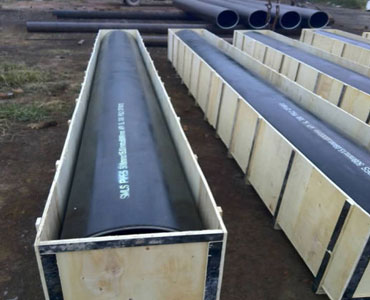

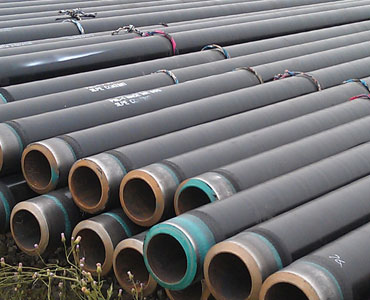

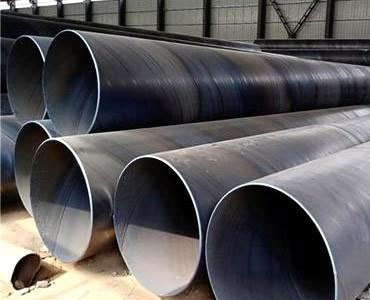

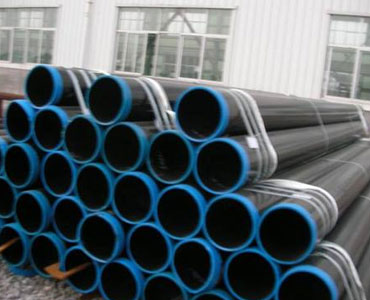

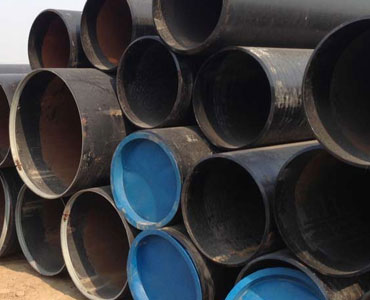

Types of CS API 5L Welded Pipe

If you searching a supplier from these places check our suppliers below

API 5L Large Diameter spiral welded steel pipe	Finland, Malaysia, USA, Bangladesh
API 5L Standard Black Iron Pipe Steel Pipe	Italy, Iran, Chile, Singapore
API 5L sch40 Welded steel pipes	Egypt, Spain, UK, Mexico
nps 44" api 5l spiral Welded steel pipe	Ellington -United States, Poland, Canada, UK
API 5L Welded carbon steel pipe	United Kingdom -UK, Europe, UAE, Malaysia
API 5L 14 inch welded steel pipe	Colombia, Malaysia, Sweden, China
API 5L ERW/SSAW Spiral Steel Pipe	Dubai, Netherlands, Russia, Malaysia
API 5L Welded carbon steel pipe schedule 80	South Africa, Saudi Arabia (KSA), Kuwait, Brazil
APL 5L 3/4"-24" Welded Steel pipe	Philippines, Nigeria, Australia, UK
API 5L Line Steel Welded Pipe & Tubing	Oman, Malaysia, Hong Kong, UAE
API 5L Black painting ERW STEEL PIPE	South Africa, Bahrain, Singapore
24 inch schedule 20 API 5L PSL 2 LSAW Steel Pipe	France, Thailand, Europe, Qatar
4 inch SCH40S API5L Welded Carbon Steel Pipe	United Arab Emirates (UAE), Norway, Malaysia, Turkey
API 5L B pipe line Welded steel pipe	Dammam -KSA, Indonesia, Belgium, Philippines.
API 5L Hot Rolled Round Polished Welded Carbon Steel Pipe	Canada, Singapore, Malaysia, Philippines
API 5L SCH 40 80 160 carbon Welded steel pipe	Japan, Europe, Romania, Malaysia
API 5L ERW steel line pipe	Germany, Czechia, Malaysia, Thailand
