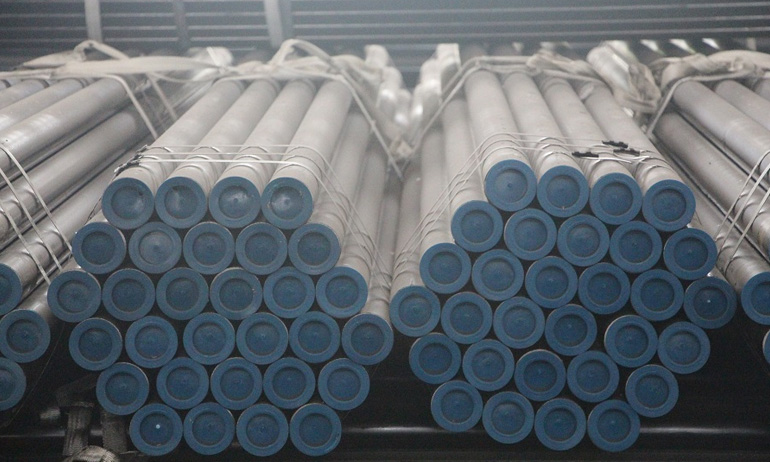

API 5L Grade X80 PSL2 Seamless and Welded Pipe supplier in India

API 5L X80 Seamless Pipe and Carbon Steel Grade X80 PLS2 Line Pipe material supplier in Mumbai, India

The American Petroleum Industry's technical committee, popularly known as API, has established several guidelines that pipe suppliers and manufacturers must adhere to. The API 5L X80 Pipes were created to meet the needs of the petroleum, oil, and gas industries for the transmission of fluid or gas from refineries to factories.

A standard called API 5L describes the production process and divides it into two PSLs, or product specification levels, known as PSL 1 and PSL 2.

In addition to the API, the ISO, or International Organization for Standardization, is another governing body that has implemented two product specification levels. The Iso 3183 L555 Pipe PSL 2 that has been specified is made in accordance with the various annexures of the standard. Higher grade API 5L pipes are capable of providing a significantly greater performance. For instance, manufacturers of the better grade API 5L X80 Line Pipe typically maintain a stricter control on the level of carbon, resulting in higher mechanical characteristics in these pipes. Since API 5L pipes can be either seamless or welded, the levels of carbon will fluctuate depending on the type of construction. Any API 5L pipe that has been welded together typically has less sulphur and carbon.

Better weldable qualities are made possible by decreasing these two components in the alloy used to make API 5L Grade X80 Carbon Steel ERW Pipe. Petroleum as well as the oil and gas sectors favour carbon steel as an alloy. Carbon steel is advantageous for each of these industries for a variety of reasons. First of all, carbon steel API 5L X80 PSL1 Seamless Line Pipe has a high degree of toughness and hardness, making the alloy sturdy and durable and guaranteeing a long service life. Second, they are effective in absorbing stress and vibration. The oil and petroleum industries need these qualities because the fluid travelling through the pipes may have varying pressures.

The economics of adopting carbon steel for piping systems is the third key aspect. Since carbon and iron are the only two elements used in the alloy of API 5L X80 Seamless Pipe, the price of these items falls right away, making them a more affordable option to the alloy steel grades or traditional stainless steel grades. Despite the fact that a PSL 1 pipe will function better than an API 5L X80 PSL 2 welded pipe because to more severe quality controls, testing procedures, tightly controlled chemistry, and better mechanical qualities. We are a provider that offers cut-to-length pipe in every grade, saving you money. The API 5L X80 Pipe provider Rakesh Metals carries pipes in every surface finish.

Sizes of API 5L Grade X80 CS Pipe
Types of ISO 3183 L555 Welded Pipe
Tubos API 5L X80 Pipe Schedule Chart
Equivalent Material of X80 CS Pipe
API 5L Gr X80 Pipeline Coating Pipe Types
Tolerance of API 5L Grade X80 Steel Pipe
Specification of API 5L X80 Seamless Pipe
Mechanical Properties of API 5L X80 Pipe
API 5L Grade X80 Pipe Weight Chart
API 5L X80 Gr B seamless Pipe Yield Strength
API 5L Grade X80 Pipe Pressure Rating
Chemical Composition of ISO 3183 L555
API 5L X80 Welded Pipe Price List
API 5CT L80 Seamless Pipe Inspection Method

ISO 15156 NACE MR0175/ MR0103 API 5L X 80 Carbon Steel Seamless Pipe and API 5L X80 PSL2 Material

Sizes of API 5L Grade X80 CS Pipe

TYPE	OD	Thickness
SEAMLESS	1/4 - 36 inch	1.25 - 50mm
ERW	1/8 - 24 inch	Max 26.5mm
LSAW	219 - 3120mm	3 - 25mm
SSAW	16 - 64 inch	3 - 25mm

Types of ISO 3183 L555 Welded Pipe

Are you looking for API 5L X80 Steel Line Pipe and Tubos API 5L X80 in specific size? Check out our inventory.

Tubos API 5L X80 Pipe Schedule Chart

1/2 Inch IPS(.840 Inch Outer Diameter)	6 Inch IPS(6.625 Inch Outer Diameter)
Schedule 80, 40, 10, 5, XXH, 160	Schedule 5, 10, 40, 80, 120, 160, XXH
1/8 Inch IPS(.405 Inch Outer Diameter)	3 1/2 Inch IPS( 4 Inch Outer Diameter)
3/8 Inch IPS(.675 Inch Outer Diameter)	5 Inch IPS( 5.563 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule-40 (.375)
Schedule 40, 80	Schedule 10, 40, 80, 160, XXH
1/4 Inch IPS(.540 Inch Outer Diameter)	4 Inch IPS(4.500 Inch Outer Diameter)
Schedule 10, 40, 80	Schedule 10, 40, 80, 160, XXH
3 Inch IPS( 3.500 Inch Outer Diameter)	Schedule 5, 10, 40, 80, 160, XXH
Schedule 10, 40, 80	Schedule 10, 40, 80, 160, XXH
3/4 Inch IPS(1.050 Inch Outer Diameter)	8 Inch IPS(8.625 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule 5, 10, 40, 80, 120, 160, XXH
1 Inch IPS:(1.315′ Outer Diameter)	10 Inch IPS(10.750 Inch Outer Diameter)
Schedule 5, 10, 40, 80, 160, XXH	Schedule 10, 20, 40, 80 (.500), TRUE 80(.500)
2 Inch IPS(2.375 Inch Outer Diameter)	16 Inch IPS(16.000 Inch Outer Diameter)
1-1/4 Inch IPS(1.660 Inch Outer Diameter)	12 Inch IPS(12.750 Inch Outer Diameter)
1-1/2 Inch IPS(1.900 Inch Outer Diameter)	14 Inch IPS(14.000 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule10 (.188), Schedule40 (.375)
2 1/2 Inch IPS(2.875 Inch Outer Diameter)	18 Inch IPS (18.000 Inch Outer Diameter)
Schedule 10, 40, 80, 160, XXH	Schedule 10, 20, 40(.375), TRUE40(.406), Schedule80(.500)
Schedule 10, 40, 80, 160, XXH	Schedule10(.188), Schedule40(.375)

Equivalent Material of X80 CS Pipe

API 5L	line pipe
Product Level Specification	PSL2	L555Q or X80Q L555M or X80M

These X80 pipes are well suitable for unrestricted use in onshore industries.

X80 API5L Material #1.8978	Comparison of steel grades
	EN10208-2	L555MB

API 5L X80 Pipe Material Stock

API 5L X80 Oil Linepipes	API 5L X80 Gr B Bare Pipes
API 5L Grade X80 Powder Coated Pipes	X80 Carbon Steel Pipes Sleeve material
X80 PSL2 3LPP Coating Pipes	ISO 3183 L555 3LPE Coated Pipes
API 5L X80 Gr B Water Pipeline	API 5L X80 Gr B Epoxy Coated Pipes
X80 Steel Drill Pipes	Grade X80 Cement Lined Pipes
API 5L X80 Seamless Pipes	X80 Steel Welded Pipes
API 5L X80 Gr B Erw Pipes	Grade X80 Line Pipes
API 5L Grade X80 Air Pipes	API 5L Grade X80 Spiral Welded Pipes
API 5L Grade X80 Pipeline	ISO 3183 L555 Pipes Line
Steel X80 Sour Service Pipes	Steel X80 LSAW Pipes
API 5L X80 Grade B Nace Pipeline	API 5L X80 Grade B PE Coated Pipes
API 5L X80 Gas Pipeline	X80 Carbon Steel PTFE Lined Pipes

API 5L Gr X80 Pipeline Coating Pipe Types

Powder Coating
3LPE Coated
Epoxy Lining
Internal Cement Lining
3LPP Coating (3 Layer Polypropylene)
PTFE, PFA and FRP lined
Polyethylene Coated

Tolerance of API 5L Grade X80 Steel Pipe

API 5L X80 Pipes types	API 5L X80 Pipes Size (mm)	Tolerances
Hot rolled API 5L X80 Seamless Pipe	Outer Diameter	<50	±0.50mm
	Outer Diameter	≥50	±1%
	Wall Thickness	<4	±12.5%
		≥4～20	+15%, -12.5%
		>20	±12.5%
Cold drawn API 5L X80 Seamless Pipe	Outer Diameter	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45
		>50	±1%
	Wall Thickness	<1	±0.15mm
		>1～3	+ 15%, - 10%
		>3	+ 12.5%, - 10%

Are you looking for ISO 3183 L555 X80 Pipeline Steel specification and Chemical Composition ? find here.

Specification of API 5L X80 Seamless Pipe

API 5L X80 Seamless Pipe sizes in inch	1/2 To 60
X80 Carbon Steel SAW Pipe Size in Inch	16 To 100
API 5L Grade X80 ERW Pipe Size in Inch	1/2 To 24
X80 Steel LSAW / DSAW Size in Inch	16 TO 54 Outer Diameter
Standard	ISO 3183, API, ASME, ASTM
Schedule	Schedule 80S, Schedule 80, Schedule10, Schedule 40, Schedule XXS, Schedule 160, Schedule XS, Schedule 5 Supplier and Manufacturer
Pipes Marking	All Pipes are marked as follows: Supplier or Manufacturer’s Name, Standard, Length, Grade, Outer Diameter, Thickness, Heat Number
Supplier & Distributors Located in	Rajkot, Riyadh, Ludhiana, Nagpur, Ahvaz, Bengaluru, Kuwait, Ernakulam, Hyderabad, India, Abu Dhabi, Bangalore, Mumbai, Baroda, Ahmedabad, Gurgaon, Chennai, Janeiro, Surat, Perth, Santiago, Tau, Coimbatore, London, Melbourne, Karachi, Caracas, Manama, Lagos, Kanpur, Pimpri Chinchwad, Istanbul, Thiruvananthapuram, Dammam, Khobar, Ranchi, Port of Spain, Noida, Kolkata, Muscat, Tehran, Montreal, Ludhiana, Indore, Calgary, Sydney, Ankara, Jamshedpur, Bogota, Gujarat, Vadodara, New Delhi, Howrah, Gimhae si, Courbevoie, Mexico

Mechanical Properties of API 5L X80 Pipe

PSL1

Y. Stress	T. Stress	ELONGATION
Mpa (psi)	Mpa (psi)	ELONGATION
min	min	min
551(80 000)	655(95 000)	F

PSL2

Y. Stress	T. Stress	ELONGATION
Mpa (psi)	Mpa (psi)	ELONGATION
min	min	min
485-635(70,300-92,100)	655-862(95000-125000)	F

IMPACT TEST
AVG. ABSORBED ENERGY	IND. ABSORBED ENERGY
Min.(joules)	Min.(joules)
27	20

All Sizes available in EN10208-2 API 5L X80 Seamless Pipes with Test Certificates, check API 5L X80 Material Weight Chart

API 5L Grade X80 Pipe Weight Chart

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
		0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

API 5L X80 Gr B seamless Pipe Yield Strength

Grade	Permissible yield point ratio	Yield Stress MPa (min)	Tensile Stress MPa	Elongation % (min)
X80 Pipe	= 0.90	555	625 – 700	20

API 5L Grade X80 Pipe Pressure Rating

Pipe O.D. (in.)	Wall Thickness of Pipe (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Chemical Composition of ISO 3183 L555

Grades	Material number	Carbon	Silicon	Manganese	Phosphorus	Sulfur	Aluminium	Molybdenum	Nickel	Niobium
X80	1.8978	0.08	0.26	1.75	0.011	0.0005	0.03	0.27	0.22	0.070

API 5L X80 Welded Pipe Price List

Description	Price Per Ton in INR	Price Per Ton in USA $	Price Per Ton in UAE Dirham
API 5L X80 large diameter anti rust varnished epoxy coating carbon ssaw steel pipe	INR 50976.83	USA $ 700	AED 2571.24
API 5L X42 X80 round API standard carbon mild ssaw steel pipe	INR 32770.82	USA $ 450	AED 1652.94
API 5L X80 seamless steel line pipe	INR 36573.53	USA $ 500	AED 1836.55
api 5l gr x65 psl 2 x80 carbon steel seamless pipe	INR 43888.23	USA $ 600	AED 2203.86
api 5l X80 steel pipe, 750mm lsaw steel pipe	INR 40230.88	USA $ 550	AED 2020.20

API 5CT L80 Seamless Pipe Inspection Method

Size and surface inspection
Hydrostatic
NDT and pressure test and third party certication
Hardness and pressure test
Drifting test
Physical and chemicail analysis
Magnetic particle
Electromagnetic
Ultrasonic

If you searching a supplier from these places check our suppliers below

Products	We supplied to following Locations
API 5L X80 large diameter anti rust varnished epoxy coating carbon ssaw steel pipe	Kuwait, Brazil, South Africa, Saudi Arabia (KSA)
API 5L X80 steel pipe	Australia, Philippines, Nigeria, UK
API 5L X80 round API standard carbon mild ssaw steel pipe	Hong Kong, Oman, Malaysia, UAE
API 5L X80 seamless steel line pipe	Bahrain, Singapore, South Africa
High Quality API 5L X80 deep well water pipes	Chile, Singapore, Italy, Iran
api 5l X80 lsaw pipe 3pe,large diameter Lsaw Carbon Steel Pipe	Norway, Malaysia, Turkey, United Arab Emirates (UAE)
api 5l gr X80 psl 2 x70 x80 carbon steel seamless pipe	Belgium, Philippines, Dammam -KSA, Indonesia.
X80 api 5l standard seamless pipe	Malaysia, Philippines, Canada, Singapore
api 5l X80 steel pipe, 750mm lsaw stee pipe	Romania, Japan, Europe, Malaysia
API 5L X42 X46 X60 X80 Galvanized Steel Pipe	Sweden, China, Colombia, Malaysia
High Quality API 5L X80 PSL2 5 Inch Galvanized Pipe	Russia, Dubai, Netherlands, Malaysia
api 5l grade x80 pipe	UK, Mexico, Egypt, Spain
api 5l psl1 psl2 x80 carbon steel black painted lsaw steel pipe	Poland, Canada, Ellington -United States, UK
API 5L PSL1 PSL2 X80 SSAW Sprial Weld Seam Steel Pipe	Europe, UAE, United Kingdom -UK, Malaysia
API 5L PSL2 X80 SSAW Steel Pipe	Europe, France, Thailand, Qatar
API 5L X80 PSL2 NACE MR0175 ISO15156 LSAW STEEL PIPES 44" XS	Malaysia, Germany, Czechia, Thailand
API5L X60 X80 Sprial Weld Seam Steel Pipe	USA, Bangladesh, Finland, Malaysia

API 5L X80 Pipe Supplier
